Vighnahar’s Quality Facility & Processes

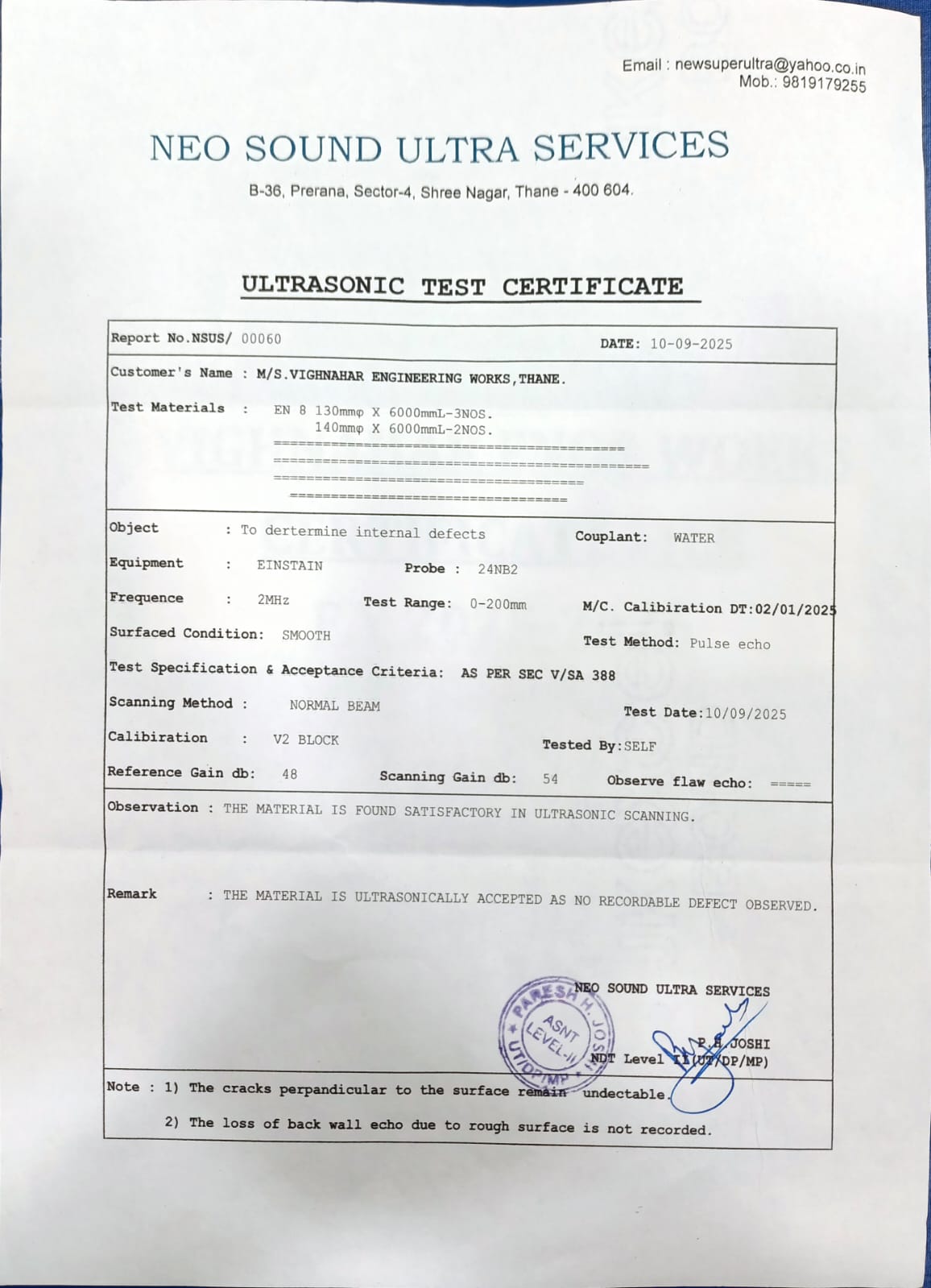

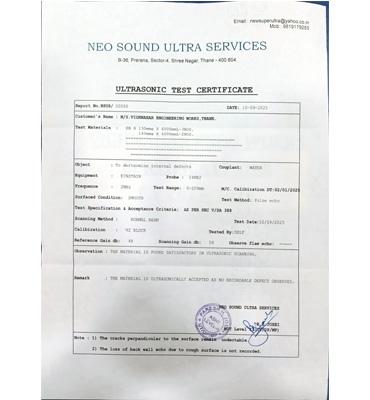

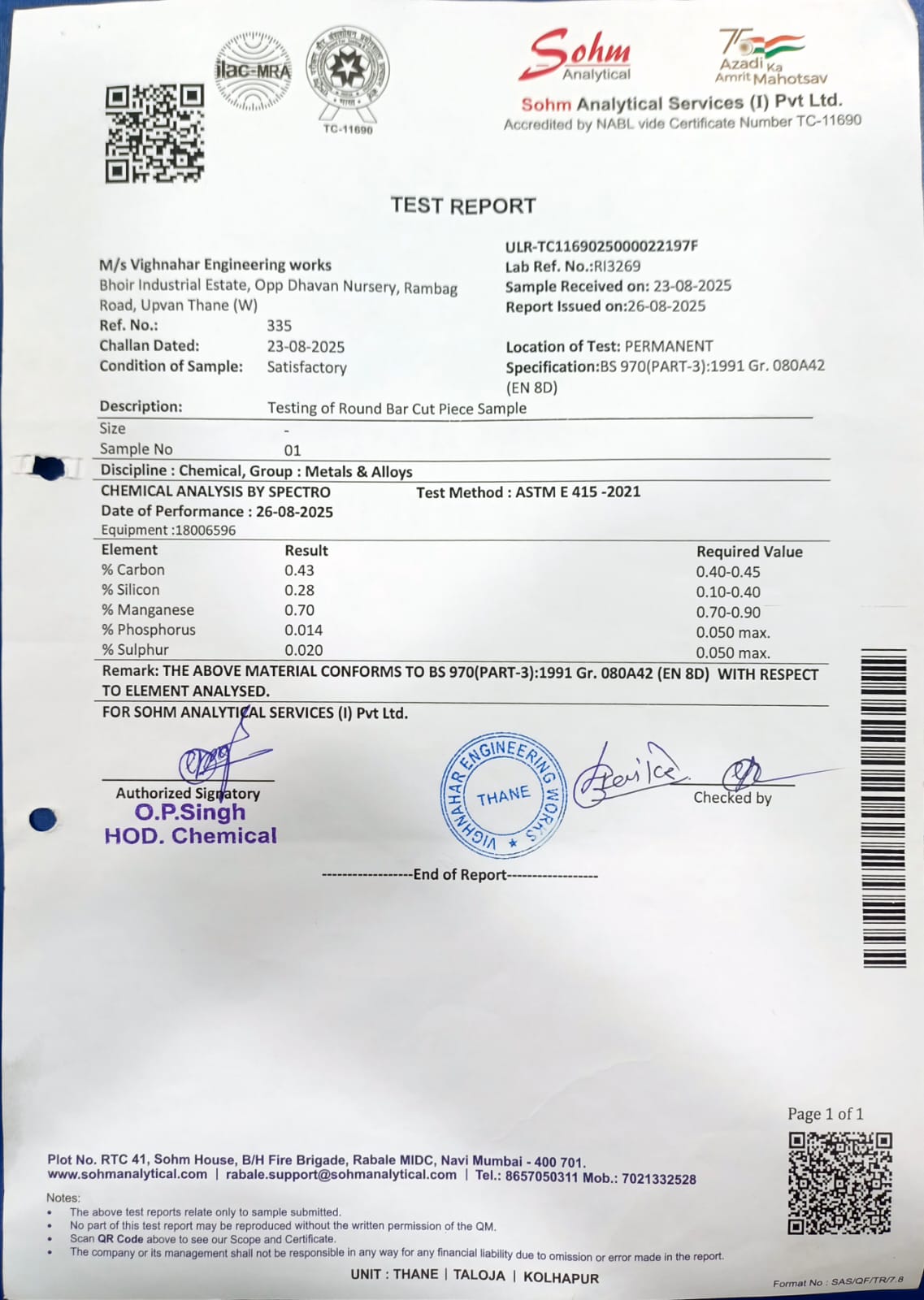

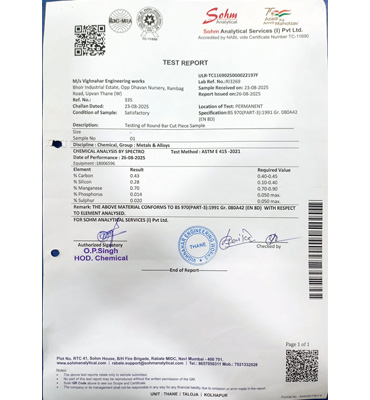

Our primary quality processes focus on precision shaping and foundational integrity, beginning with NABL-certified chemical analysis and Ultrasonic testing to eliminate hidden material flaws, Every stage is punctuated by stringent quality gates and verified measurements that align with global and ISO process standards, ensuring that from raw material inward to final dispatch. Leveraging the latest measuring equipment, every component is meticulously monitored in-process and thoroughly inspected to ensure micron-level accuracy prior to dispatch.

Measuring & Inspection Instruments

Sr. No.	Instrument Name	Quantity	Size / Range

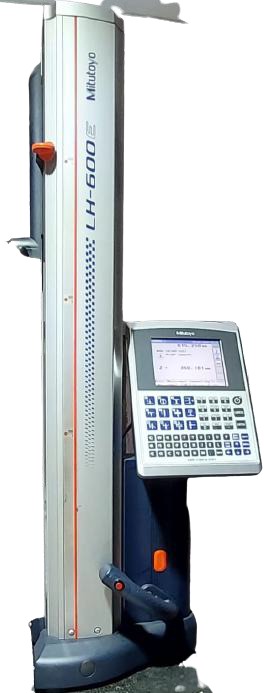

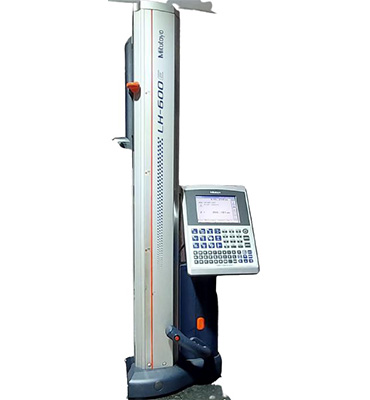

1	Micro Hite – Mitutoyo (Japan Make)	1 Unit	600 mm

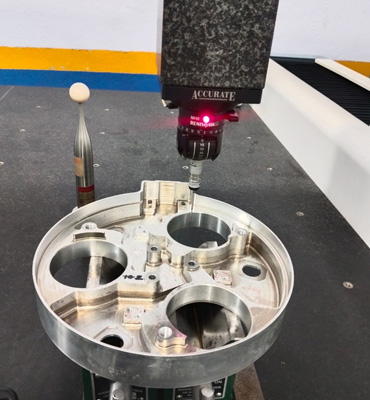

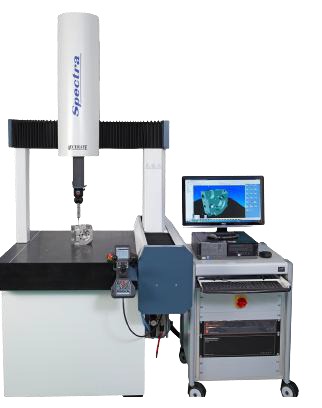

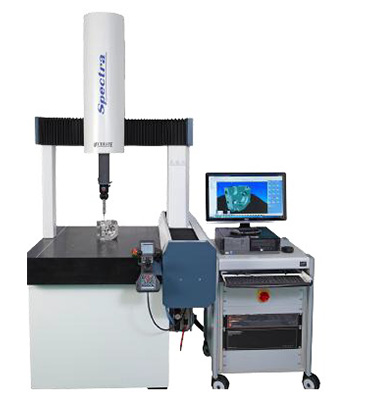

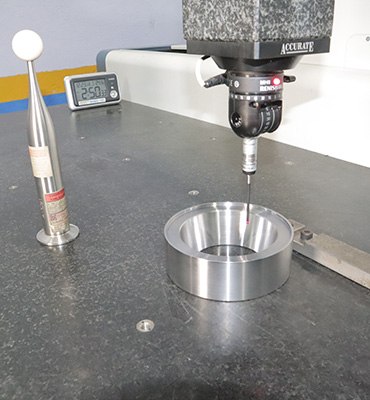

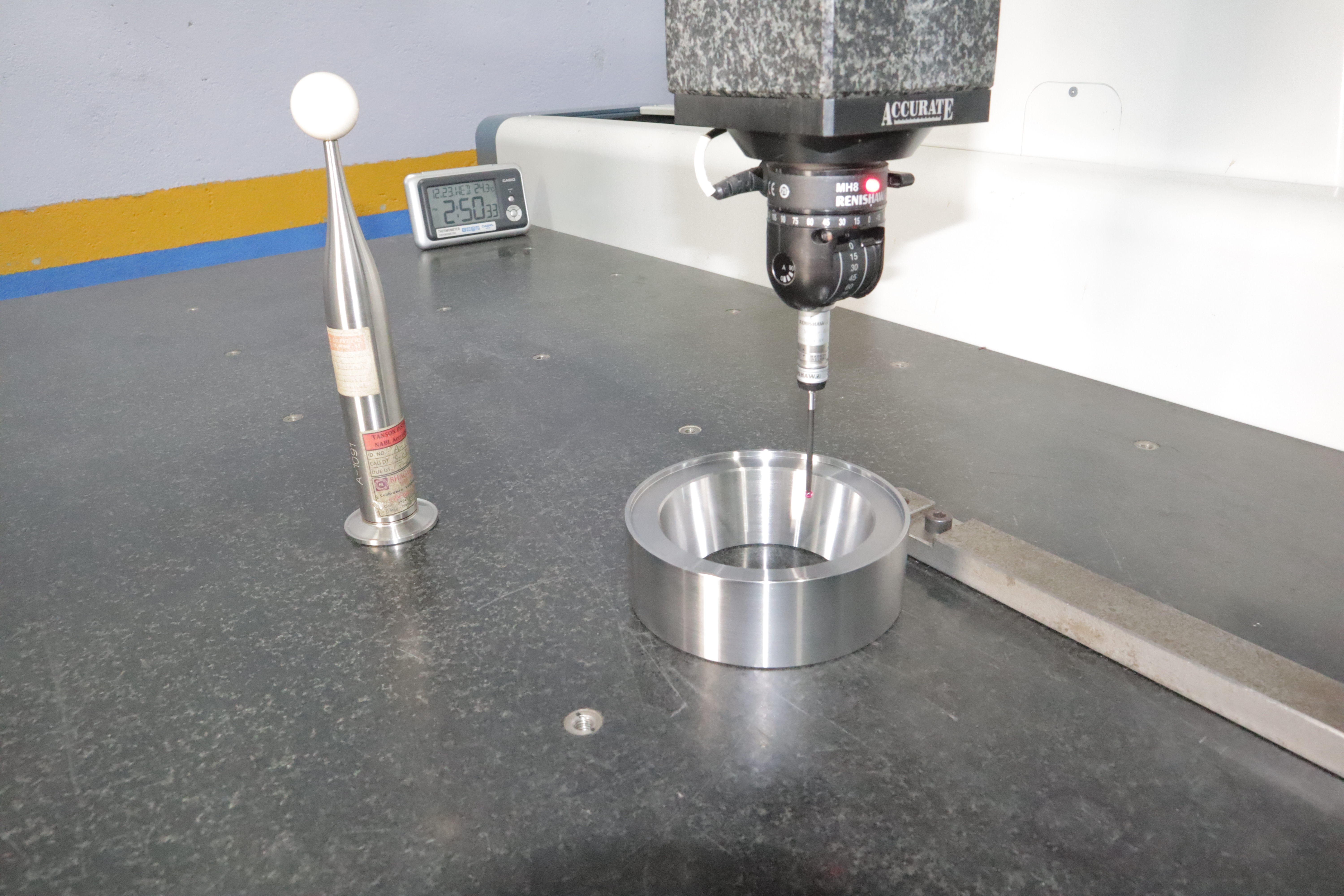

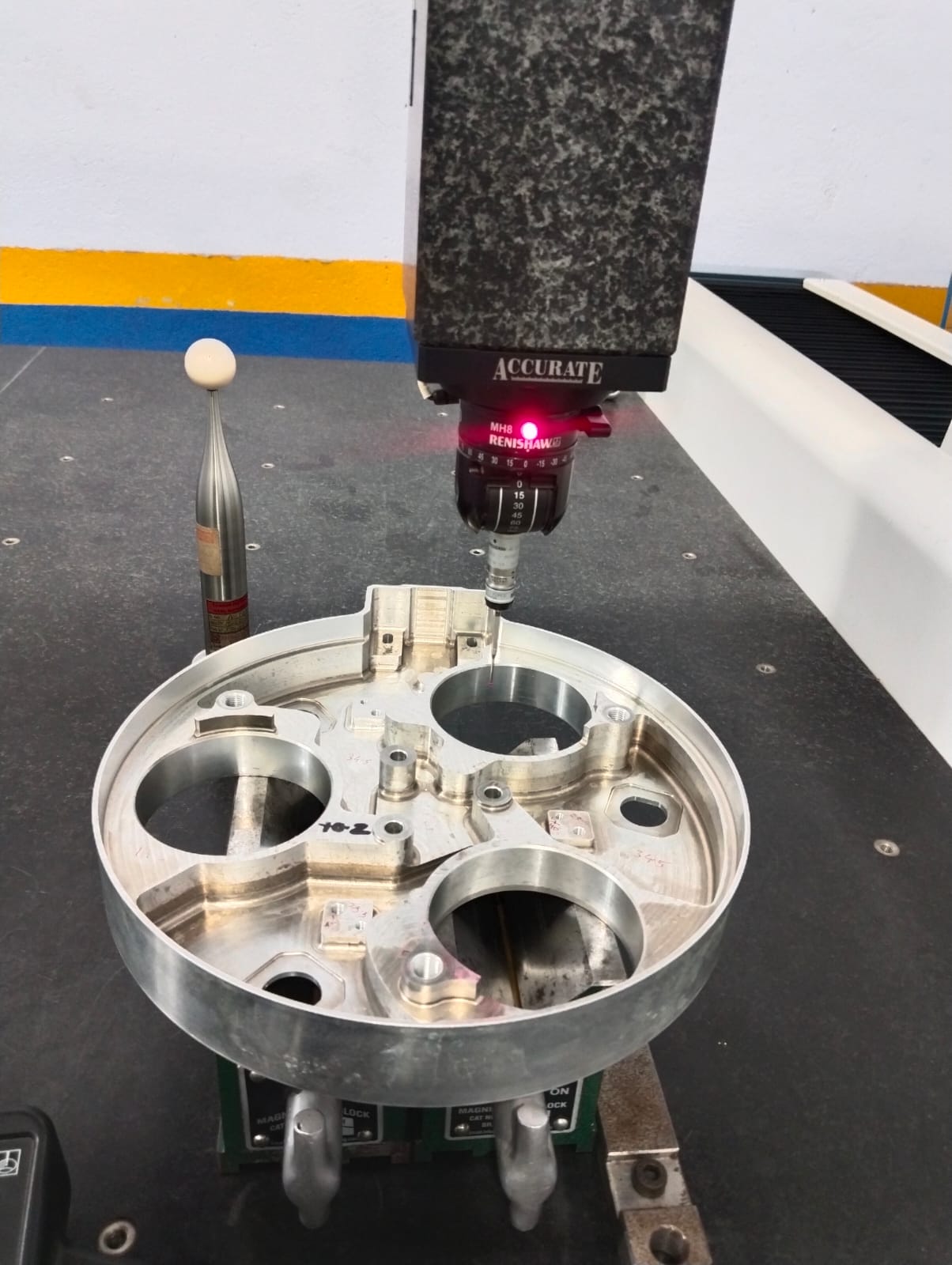

2	CMM Machine (Accurate Brand)	1 Unit	600 × 1000 × 500 mm
3	Micrometer	2 Units	0 – 25 mm
4	Micrometer	1 Unit	25 – 50 mm
5	Micrometer	1 Unit	50 – 75 mm
6	Micrometer	1 Unit	75 – 100 mm
7	Depth Micrometer	2 Units	0 – 25 mm
8	Thread Plug Gauges	2 Sets	M3 – M12
9	Radius Gauges	2 Sets	0.5 – 18 mm
10	BSPT Gauges	1 Set	1/8” – 1”
11	Bore Gauge	1 Unit	11 – 18 mm
12	Bore Gauge	1 Unit	18 – 36 mm
13	Bore Gauge	1 Unit	35 – 60 mm
14	Bore Gauge	1 Unit	50 – 150 mm
